Hệ thống bôi trơn tự động SKF - LAGD 1000

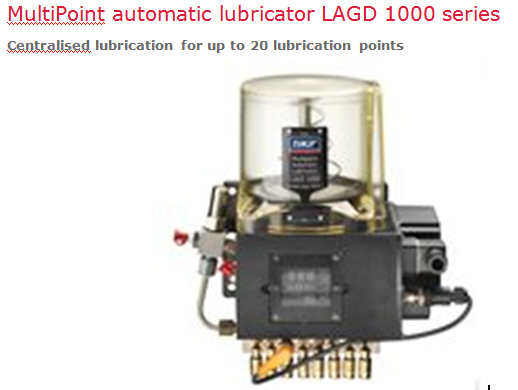

The SKF MultiPoint Automatic Lubricator LAGD 1000 is a reliable centralised lubrication system offering lubrication solutions for bearings and machinery. The LAGD 1000 uses a high-pressure pump and a progressive feeder for lubricating from 10 to 20 lubrication points. Supplied as a complete ready to use kit, all accessories required are included in the box.

  • Suitable for greases from NLGI 000 to NLGI 2, offers high flexibility in types of lubricants that can be used
  • Sturdy, robust design with IP65 rating, suitable for most industrial environments
  • Transparent reservoir, allows visual monitoring of lubricant level
  • Progressive divider so that exactly the same amount of grease reaches each lubrication point
  • 1 litre (33.8 US fl. oz) refillable grease container, increases intervals between re-filling
  • Extensive programming options, allowing flexibility to suit most applications
  • Empty container alarm, helps reduce the risks associated with lack of lubrication
  • Wide temperature range, helps meet a variety of tough operating conditions, year round
  • Cycle switch function notifies operator of blocked outlets so that proper action can be taken
  • SKF DialSet program or LubeSelect for SKF greases can be used to calculate the amount of grease required over a given time period.


Technical data

Designation

LAGD 1000/DC

Max. operating pressure

150 bars (2 175 psi)

Permissible operating temperature

-25 to 75 °C (-13 to 167 °F)

Number of outlets

10 to 20

Max. length of pipes

6 m (19.7 ft)

Tubing

6 x 1,25 mm (0.05 in.)

Output of pump element

2 cm³/min (0.122 in.³/min)

Reservoir capacity

1 litre (33.8 US fl. oz)

Greases

up to NLGI grade 2

Flow pressure < 700 mbar

Weight

3,7 kg (8.2 lbs)

System of protection

IP65

Electrical specifications



Power connection

DIN EN 175 301-803, plug supplied

Rated voltage

24V DC

Power consumption

n/a

Battery type

n/a

Type power input at 20 °C (68 °F)

0,5 A
